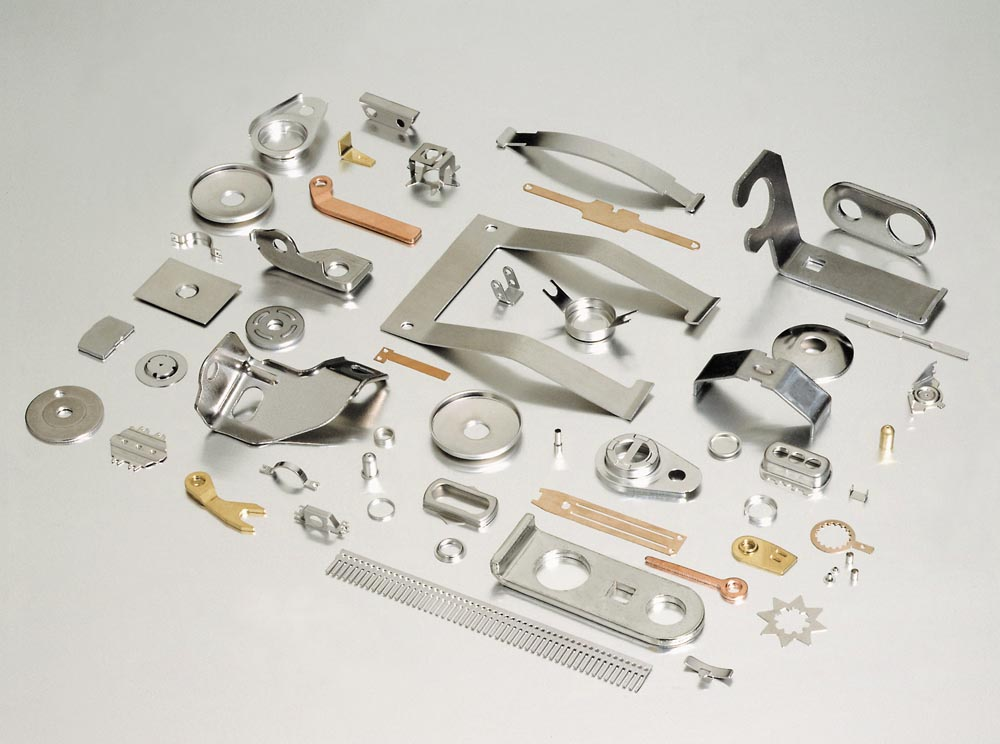

Essential Quality Tests for Metal Stamping Parts

Manufacturing excellence in metal fabrication requires rigorous quality assurance protocols, particularly when producing precision stamping parts for industrial applications. Quality testing ensures that each component meets stringent dimensional tolerances, material specifications, and performance standards demanded by modern manufacturing processes. These comprehensive evaluation procedures protect both manufacturers and end-users from costly failures while maintaining consistent production quality across large-scale operations.

Dimensional Accuracy Verification Methods

Coordinate Measurement Machine Testing

Coordinate Measurement Machines represent the gold standard for dimensional verification of stamping parts in modern manufacturing facilities. These sophisticated instruments utilize precision probes to capture three-dimensional measurements with accuracies reaching micrometers. CMM testing provides comprehensive geometric analysis including flatness, perpendicularity, concentricity, and profile deviations that manual measurement tools cannot reliably detect. Advanced software packages generate detailed reports comparing actual measurements against CAD specifications, enabling rapid identification of dimensional discrepancies.

The measurement process begins with proper workpiece fixturing to eliminate movement during scanning operations. Trained technicians establish reference datums based on engineering drawings, then systematically probe critical features according to predetermined inspection plans. Temperature compensation algorithms account for thermal expansion effects, ensuring measurement reliability across varying environmental conditions. Statistical process control integration allows real-time trending analysis to identify gradual tool wear or process drift before quality issues emerge.

Gauge and Fixture Inspection Protocols

Go/no-go gauges provide rapid production-floor verification for high-volume stamping operations where CMM testing would create bottlenecks. These dedicated fixtures incorporate critical dimensional limits as physical constraints, allowing operators to quickly verify part conformance without specialized measurement training. Properly designed gauge systems check multiple features simultaneously while maintaining inspection cycle times compatible with production rates.

Fixture-based inspection systems offer enhanced capability for complex geometries requiring multiple simultaneous measurements. Custom fixtures position stamping parts consistently while incorporating various measurement devices including dial indicators, linear encoders, and pneumatic gauging systems. Regular calibration schedules ensure continued accuracy while statistical sampling plans optimize inspection frequency without compromising quality assurance coverage.

Material Property Assessment Techniques

Hardness Testing Procedures

Hardness measurement provides crucial insight into material properties affecting stamping part performance in service applications. Rockwell, Brinell, and Vickers testing methods each offer distinct advantages depending on material thickness, hardness range, and required precision levels. Rockwell testing delivers rapid results suitable for production environments, while Vickers microhardness enables measurement of thin sections and heat-affected zones with minimal surface preparation.

Testing procedures require careful specimen preparation including surface cleaning and appropriate mounting techniques. Multiple measurements across representative areas provide statistical confidence in material uniformity while identifying potential heat treatment inconsistencies. Hardness correlation charts enable estimation of tensile strength properties when direct mechanical testing proves impractical due to part geometry constraints or material availability limitations.

Metallographic Analysis Methods

Microscopic examination reveals internal material structure affecting stamping part reliability and service life expectations. Metallographic preparation involves systematic sectioning, mounting, grinding, and polishing procedures to expose representative cross-sections for optical examination. Grain size analysis, inclusion distribution assessment, and phase identification provide quantitative data supporting material specification compliance verification.

Advanced metallographic techniques including electron microscopy and X-ray diffraction enable detailed characterization of specialized alloys and surface treatments. These analytical methods prove particularly valuable when investigating failure mechanisms or validating new material suppliers. Digital image analysis systems automate measurement procedures while maintaining comprehensive documentation for traceability requirements and continuous improvement initiatives.

Surface Quality Evaluation Standards

Surface Roughness Measurement

Surface finish specifications directly impact stamping part functionality in applications requiring precise fits, sealing surfaces, or aesthetic requirements. Profilometer instruments measure surface roughness parameters including Ra, Rz, and Rmax values according to international standards. Contact stylus methods provide high accuracy for machined surfaces while optical techniques enable non-destructive measurement of delicate coatings and treatments.

Measurement procedures require careful consideration of sampling length, evaluation length, and filter settings appropriate for the expected surface characteristics. Multiple measurements across representative areas account for potential variation while statistical analysis identifies trends correlating surface finish with processing parameters. Automated measurement systems integrate with manufacturing execution systems to provide real-time process feedback and automated documentation generation.

Coating Thickness Verification

Protective coatings enhance stamping part corrosion resistance and appearance while requiring precise thickness control for optimal performance. Magnetic induction methods measure non-magnetic coatings on ferrous substrates with excellent accuracy and repeatability. Eddy current techniques enable measurement on non-ferrous base materials while ultrasonic methods provide capability for very thick coatings or multi-layer systems.

Measurement protocols establish appropriate probe selection, calibration procedures, and sampling patterns ensuring representative coverage across part surfaces. Statistical analysis identifies coating uniformity while trending data reveals process capability and control system effectiveness. Integration with coating application equipment enables closed-loop thickness control preventing both under-application and material waste from excessive coating thickness.

Mechanical Performance Testing

Tensile Strength Evaluation

Mechanical testing validates stamping part strength characteristics under representative loading conditions anticipated during service applications. Tensile testing determines ultimate strength, yield strength, and elongation properties essential for structural applications and safety-critical components. Specimen preparation follows standardized procedures ensuring consistent cross-sectional areas and surface conditions for reliable test results.

Universal testing machines equipped with appropriate gripping systems and extensometers provide precise load and displacement measurements throughout the testing sequence. Data acquisition systems capture complete load-displacement curves enabling detailed analysis of material behavior including elastic modulus determination and fracture characteristics. Testing multiple specimens from each production lot ensures statistical confidence while identifying potential material batch variations requiring investigation.

Fatigue Life Assessment

Cyclic loading conditions encountered in many stamping parts applications require fatigue life evaluation to prevent unexpected service failures. Fatigue testing machines apply controlled cyclic loads while monitoring crack initiation and propagation behavior. S-N curve development establishes safe operating stress levels for specified service life requirements while accounting for environmental factors and surface condition effects.

Accelerated testing protocols reduce evaluation time through elevated stress levels and controlled environmental conditions. Statistical analysis methods including Weibull distribution fitting provide confidence intervals for predicted service life while accounting for material variability inherent in manufacturing processes. Finite element analysis correlation validates testing results and extends fatigue life predictions to complex geometries and loading conditions not easily replicated in laboratory testing.

Non-Destructive Testing Applications

Ultrasonic Inspection Methods

Ultrasonic testing detects internal discontinuities in stamping parts without compromising component integrity for subsequent use. High-frequency sound waves propagate through material thickness while reflections from interfaces, voids, or inclusions indicate potential quality issues. Pulse-echo techniques provide depth information for defect location while through-transmission methods enable detection of subtle material variations affecting performance.

Advanced phased array systems offer enhanced inspection capability through electronic beam steering and focusing. These systems generate detailed cross-sectional images revealing internal structure while maintaining high inspection speeds compatible with production requirements. Automated inspection systems integrate ultrasonic testing with material handling equipment enabling 100% inspection coverage for critical applications requiring absolute reliability assurance.

Magnetic Particle Testing Procedures

Surface and near-surface crack detection in ferromagnetic stamping parts utilizes magnetic particle inspection techniques proven effective for safety-critical applications. Magnetic field application creates leakage fields at discontinuities while ferromagnetic particles accumulate at these locations for visual detection. Wet fluorescent methods provide maximum sensitivity while dry powder techniques offer convenience for field applications and large component inspection.

Proper magnetization techniques ensure adequate field strength and direction for optimal defect detection while avoiding excessive residual magnetism requiring subsequent demagnetization. Inspection procedures include surface preparation requirements, particle application methods, and acceptance criteria based on defect size and location relative to critical stress areas. Documentation systems maintain inspection records supporting traceability requirements and failure analysis investigations when service issues occur.

Statistical Process Control Implementation

Control Chart Development

Statistical process control provides systematic monitoring of stamping part quality characteristics enabling proactive process adjustment before defective products reach customers. Control chart construction utilizes initial capability studies establishing process centerlines and control limits based on natural process variation. X-bar and R charts monitor both process centering and variation while individual measurement charts track single characteristics requiring 100% inspection.

Control limit calculations incorporate appropriate statistical factors accounting for subgroup size and measurement system uncertainty. Process capability indices including Cp, Cpk, Pp, and Ppk quantify process performance relative to specification requirements while identifying improvement opportunities. Real-time data collection systems enable immediate out-of-control condition detection while historical trending reveals long-term process behavior patterns requiring management attention.

Sampling Plan Optimization

Effective sampling strategies balance inspection costs with quality risk management requirements for efficient stamping parts production. Statistical sampling plans utilize acceptance quality level concepts determining appropriate sample sizes and acceptance criteria for various lot sizes and quality requirements. Military Standard 105 and similar international standards provide proven sampling schemes ensuring consistent quality protection across different production scenarios.

Risk analysis considers both producer and consumer perspectives when establishing sampling parameters for stamping parts applications. Operating characteristic curves illustrate sampling plan performance across various actual quality levels while economic analysis optimizes inspection frequency based on failure costs and inspection expenses. Continuous improvement initiatives utilize sampling data for process optimization while maintaining appropriate quality assurance coverage for customer protection.

FAQ

What frequency should quality testing be performed on stamping parts

Testing frequency depends on production volume, part criticality, and process stability characteristics. High-volume production typically requires statistical sampling approaches with frequency determined by control chart analysis and process capability data. Critical safety components may require 100% inspection while stable processes producing non-critical parts can utilize reduced sampling with appropriate risk analysis documentation.

How do you establish appropriate quality standards for custom stamping applications

Quality standards development begins with customer application requirements analysis including service conditions, performance expectations, and regulatory compliance needs. Industry standards provide baseline requirements while customer specifications define additional constraints. Material properties, manufacturing process capabilities, and measurement system limitations influence achievable quality levels requiring collaborative specification development between customer and supplier engineering teams.

Which testing methods provide the most cost-effective quality assurance for stamping operations

Cost-effectiveness depends on production volume, quality requirements, and failure consequences specific to each application. High-volume operations benefit from automated measurement systems and statistical sampling while low-volume custom work may justify 100% inspection using manual measurement techniques. Risk-based approaches prioritize testing resources on critical characteristics while utilizing less expensive methods for non-critical features maintaining overall quality assurance effectiveness.

How can testing data be used to improve stamping process performance

Quality testing data provides feedback for process optimization through statistical analysis identifying variation sources and improvement opportunities. Correlation analysis links process parameters with quality results enabling predictive control system development. Trend analysis reveals gradual changes requiring preventive maintenance while capability studies quantify improvement potential from process modifications or equipment upgrades supporting continuous improvement initiatives.
